Factory Standard Tote Storage
Optional Single, Double or Triple Depth Capacity
SINGLE TOTE & PALLET STORAGE OPTIONS
6’ DEEP, UP TO 4-HR FIRE-RATED
1 TOTE DEEP
TS1406
9’ Roll-up Door
2 WIDE
4 TOTES/PALLETS
16 DRUM CAPACITY
TS1806
14’ Roll-up Door
3 WIDE
6 TOTES/PALLETS
24 DRUM CAPACITY

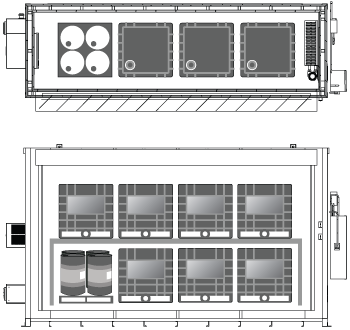

TS2206
17’ Roll-up Door
4 WIDE
8 TOTES/PALLETS
32 DRUM CAPACITY

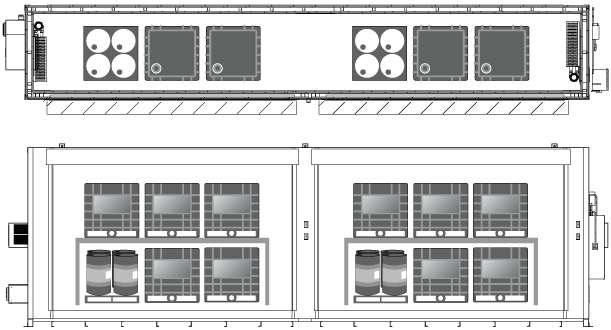

TS3406
Double 14’ Roll-up Doors
6 WIDE
12 TOTES/PALLETS
48 DRUM CAPACITY
TS4206
Double 17’ Roll-up Doors
8 WIDE
16 TOTES/PALLETS
64 DRUM CAPACITY
DOUBLE TOTE & PALLET STORAGE OPTIONS
10’ DEEP, UP TO 4-HR FIRE-RATED
2 TOTES DEEP

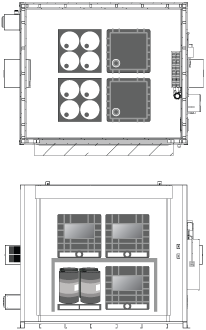

TS1410
9’ Roll-up Door
2 WIDE
8 TOTES/PALLETS
32 DRUM CAPACITY

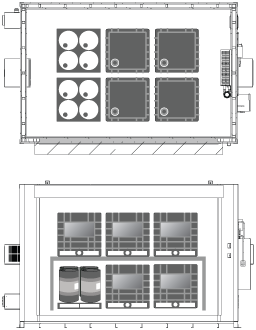

TS1810
14’ Roll-up Door
3 WIDE
12 TOTES/PALLETS
48 DRUM CAPACITY

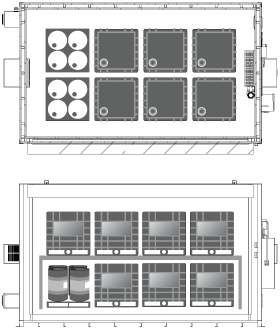

TS2210
17’ Roll-up Door
4 WIDE
16 TOTES/PALLETS
64 DRUM CAPACITY

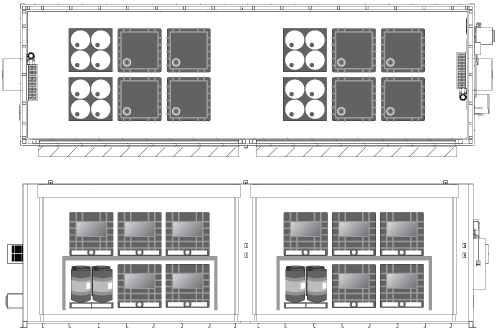

TS3410
Double 14’ Roll-up Doors
6 WIDE
24 TOTES/PALLETS
96 DRUM CAPACITY
TS4210
Double 17’ Roll-up Doors
8 WIDE
32 TOTES/PALLETS
128 DRUM CAPACITY
TRIPLE TOTE & PALLET STORAGE OPTIONS
14’ DEEP, UP TO 4-HR FIRE-RATED
3 TOTES DEEP

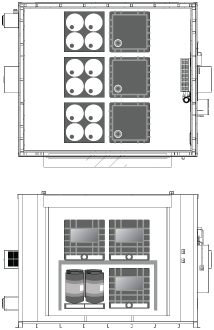

TS1414
9’ Roll-up Door
2 WIDE
12 TOTES/PALLETS
48 DRUM CAPACITY

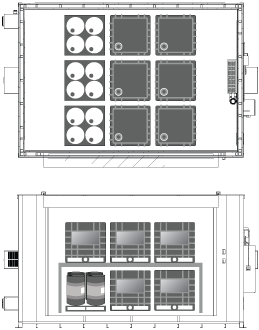

TS1814
14’ Roll-up Door
3 WIDE
18 TOTES/PALLETS
72 DRUM CAPACITY

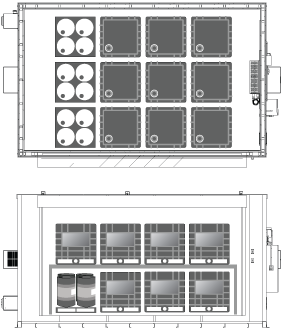

TS2214
17’ Roll-up Door
4 WIDE
24 TOTES/PALLETS
96 DRUM CAPACITY

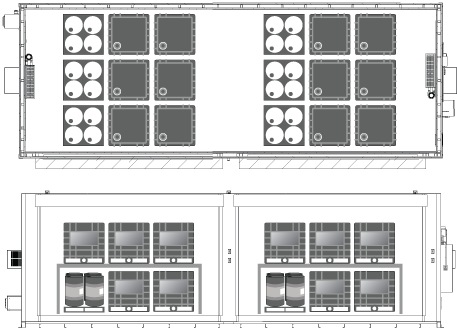

TS3414
Double 14’ Roll-up Doors
6 WIDE
36 TOTES/PALLETS
144 DRUM CAPACITY
